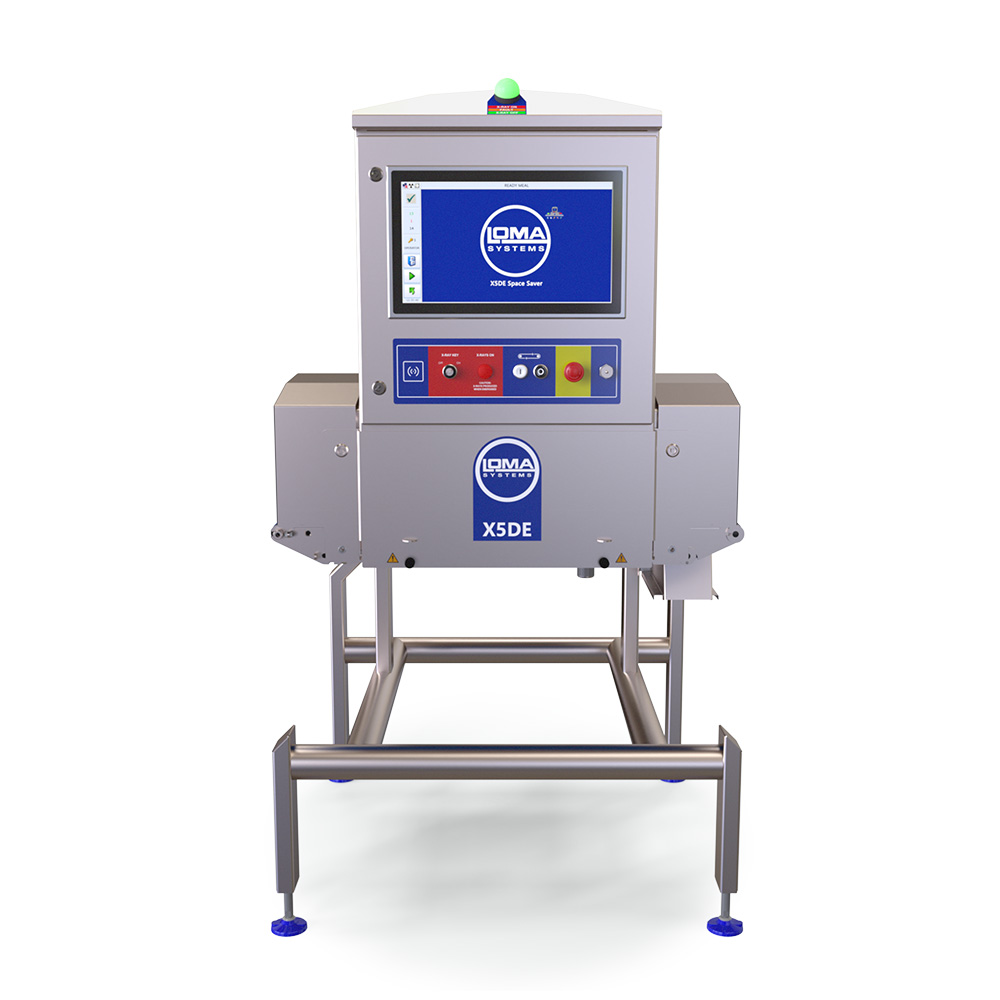

X5DE Space Saver X-Ray Inspection
X5DE Space Saver X-Ray Inspection
The X5DE is a high-performance X-ray system engineered to improve detection capabilities for complex products with a mixed density, particularly in instances where identifying contaminants has proven difficult. It is equipped with our new dual energy technology and a large 19″ colour touchscreen that enhances usability through an intuitive interface. This design simplifies the processes of configuration, operation, and maintenance, significantly minimizing the likelihood of user errors.
Why the X5DE is the Smart Choice
Enhanced Detection Performance
Dual Energy with Multi-level Algorithms – Our innovative technology ensures consistent product quality by identifying foreign bodies in overlapping products with advanced detection features. The improved accuracy greatly minimises false rejects while delivering clear, adaptable imagery that boosts contaminant detection.
By capturing X-ray images at both multi energy levels, it highlights different attenuation patterns, enhancing the system’s capability to identify contaminants. This results in more dependable and efficient inspections across many applications.
Low Total Cost of Ownership
Long-lasting components and low spare part costs provide exceptional value.
Minimised Maintenance Needs
Fewer breakdowns and a longer lifespan for components ensure reduced downtime and service needs.
Improved Security and Data Exchange
With RFID and OPC-UA, Loma’s technology ensures enhanced security, traceability and seamless integration with the end user’s internal systems.
Designed to Survive®
Loma’s inspection systems are engineered for longevity and are supported by over 60 years of industry-leading expertise, ensuring durability and reliable long-term performance.
- Material of Construction: 304 Brushed stainless steel
- System Length: 1000mm
- Line Height Option: 700 - 1000mm (+/- 50 adjustment)
- Product Height: (recommended maximum) - 180mm (<120mm if product is a solid mass)
- X-Ray Output: 210W (60kV 3.5 mA)
- IP Rating: IP66
- Belt Width: 500mm
- Belt Type: PU Blue Belt
- Weight on Belt: Up to 30kg
- Speed Range: 20 - 60 m/min
- Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & Earth
- Cooling: Vortex or AC Air Conditioning
- Operating Environment (Standard): 2°C to 10°C with cabinet warm up, 10°C to 25°C with Vortex
- Operating Environment (Optional): 25°C to 35°C AC Air conditioning (Cabinet reduced to NEMA 4x with AC Option)
- X-Ray Safety: Leakage less than 1 μSv/h
- Detection Algorithms: 19 Multi-level algorithms combined in any combinations
- Reporting: Event, Batch, Shift, PVS
- Data Retrieval: Via USB, Ethernet (OPC-UA / TRACS / LomaData)
- RFID Compatibility: 13.56 MHz - High Frequency
- Check product integrity including counting and missing items
- Manufactured with LOMA's "Designed to Survive®" philosophy
- Lead free construction
- Convenience Food | Food-to-Go
- Dairy and Egg Products
- Meat, Poultry & Fish
- Bakery
- Confectionery & Snack Foods
