FLEX Conveyor
FLEX Conveyor

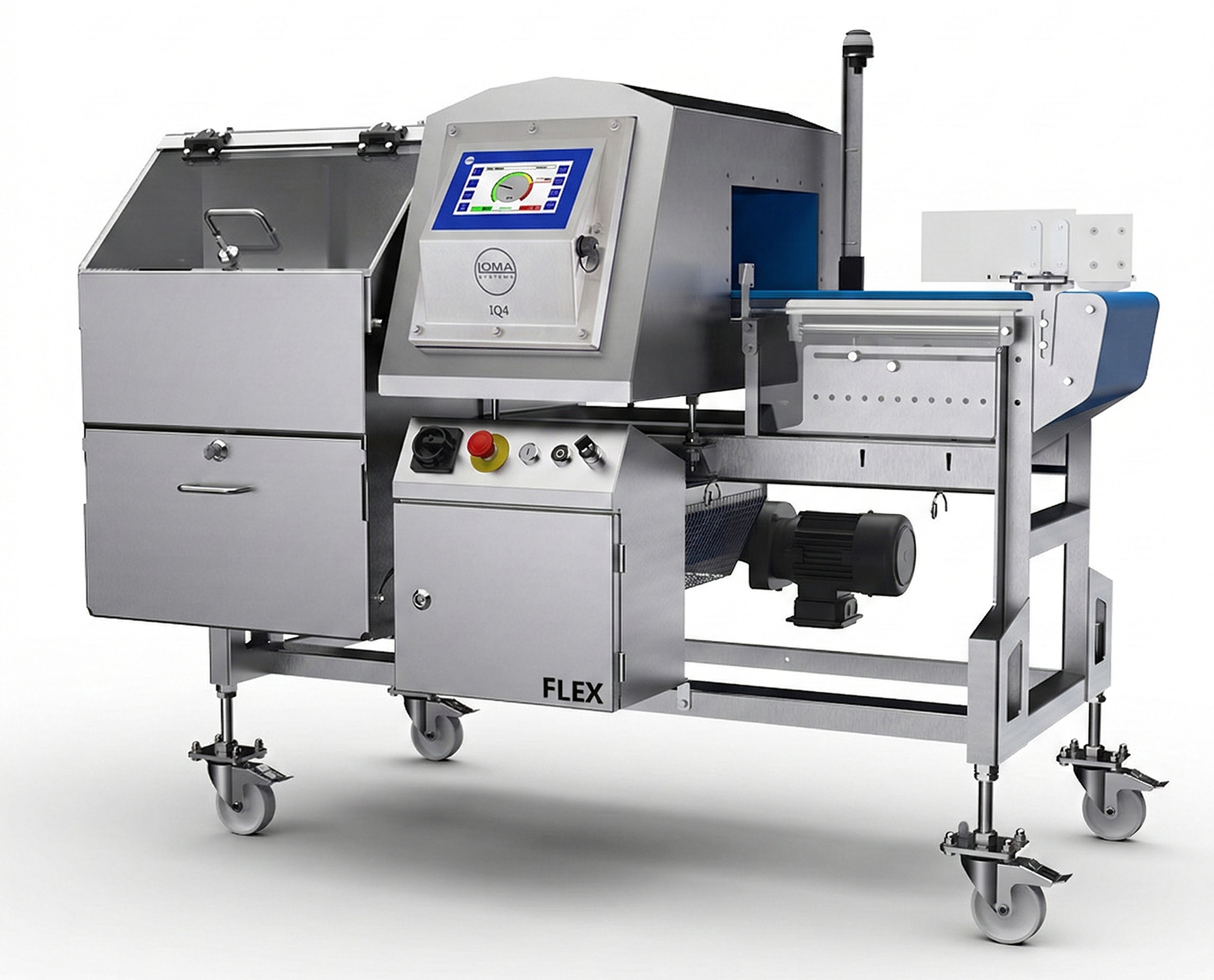

The FLEX Conveyor is designed as a quick-build solution with fast delivery to address your immediate metal detection needs, offering unparalleled flexibility to anticipate and accommodate future production line changes. To take the uncertainty out of your production operations, the FLEX is a multipurpose metal detector conveyor solution that is easily adjustable.
Why the FLEX Conveyor is the smart choice
Fast Lead Times
To get operational quickly, the FLEX conveyor can be built in less than two weeks with fast delivery.
Adjustability
As needs change, easily adjust the line length, height, speed, direction, and reject handling.
Product Flow
Small diameter rollers, for smooth product transfer on and off the FLEX Conveyor with operational speeds of up to 60 m/min.
Future Upgrade
Field upgrade a Stop-On Detect FLEX Conveyer with an Automatic Reject Conversion Kit as needs change.
The benefits of IQ4 range search heads
Excellent metal detection
The IQ4 range for the FLEX Conveyor offers optimized mechanics to deliver performance improvements using variable-frequency detection (31 to 882 KHz).
7” user friendly touchscreen
For the FLEX, the IQ4 metal detector’s large touchscreen is for improved usability, making setting-up, running and maintenance of the machine easy.
Robust “Beyond” IP69 rating search head
This search head is one of the toughest and factory friendly metal detectors on the market. Washdown upgrade available for the FLEX conveyor system.
Ensuring compliance
The FLEX conveyor system with IQ4 search head complies with strict international standards such as IFS, BRC and FSMA.
- Material of Construction: 304 Brushed stainless steel
- System Length: 1500 to 2100 mm
- Line Height Option: 800 to 950 mm variable
- Standard Belt Width: 300 | 400 | 500 mm
- Belt Type: Modular (Flush Grid)
- IP Rating: IP66, suitable for low-pressure washdown
- Power Requirements: 230v or 115 1ph / N+E 50 or 60Hz
- Apertures Available (W x H mm): 350 x 100, 150, 200 | 450 x 100 x 150, 200, 250 | 550 x 100, 150, 200, 250
- Infeed Product Guides
- Visual & Audible Alarm
- Flush Grid Modular Belt (optional Flat Top variant)
- Bakery
- Confectionery & Snack Foods
- Convenience Food | Food-to-Go
- Dairy and Egg Products
- Meat, Poultry & Fish
