X5 Pack Curtainless X-ray Inspection System
X5 Pack Curtainless X-ray Inspection System
The X5 Pack Curtainless System is designed to meet our customer needs for problem free X-ray inspection of lightweight, unsealed or dry unpackaged food products and can be integrated into line with a built-in automatic reject.

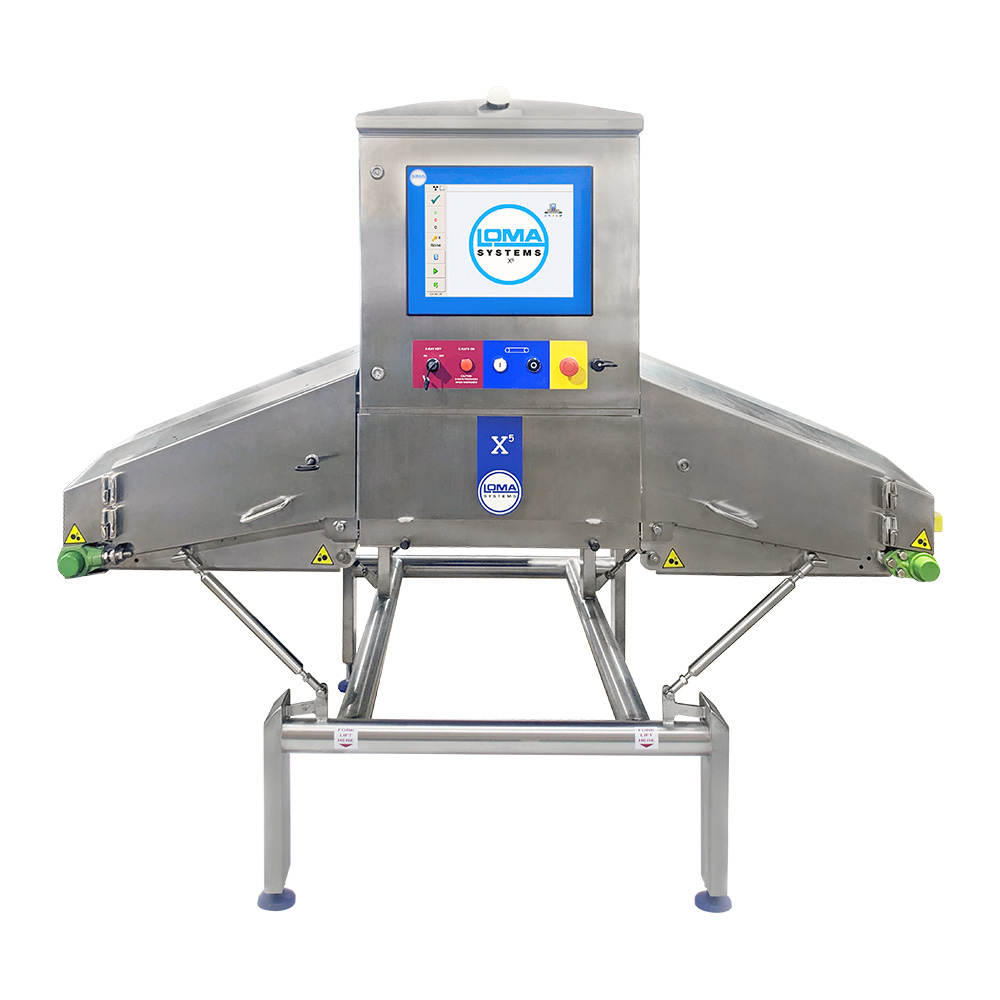

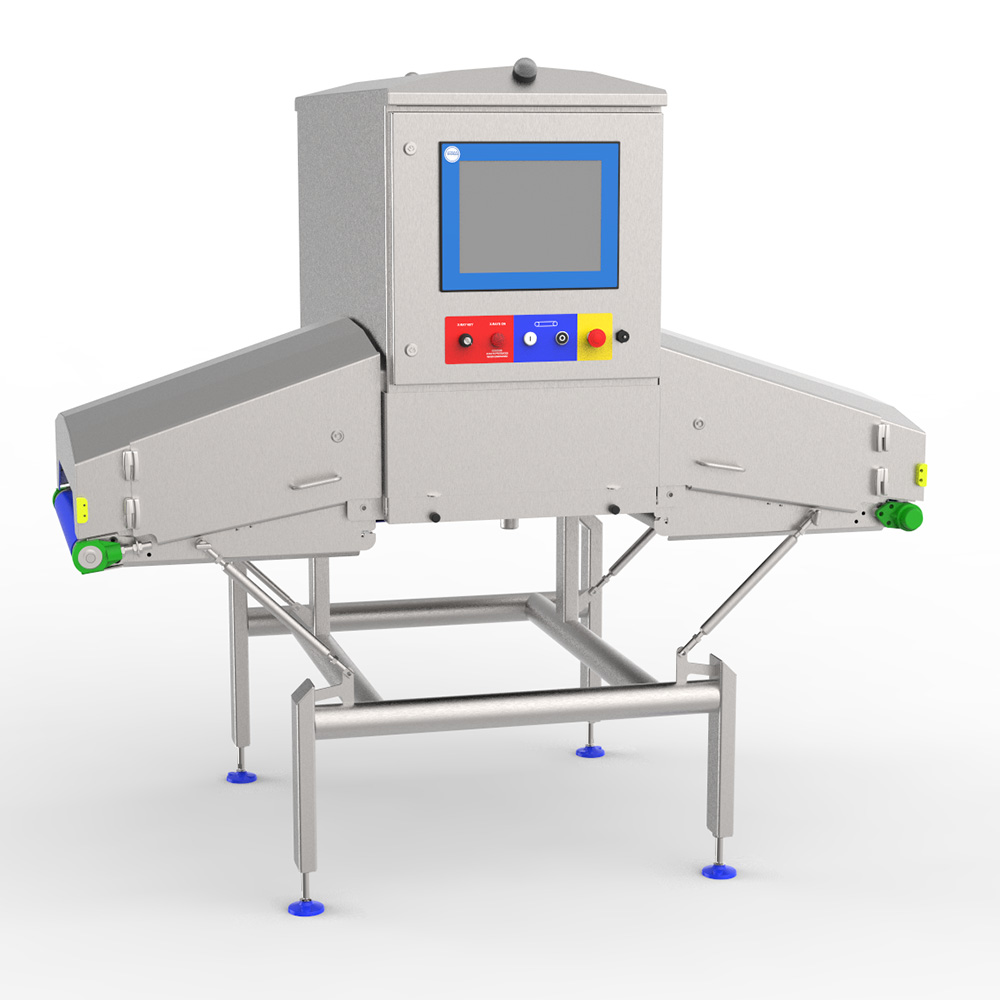

This curtainless solution features an inclined (up/down) conveyor design that allows inspected products to be untouched through the system, whilst maintaining X-ray safety. The X5-Series uses the latest digital technology to detect a wide range of contaminants including metal, bone, glass, dense plastics, foil trays and even metalized film, plus checks product integrity.
The reliable heavy duty conveyor components, built for 24/7 operation with pass key protective set-up comes integrated with a PC with Ethernet and front access USB port.
Untouched Product Flow
For small, lightweight, unsealed or dry unpackaged food products, this curtainless system passes product untouched through the system, reducing false rejects caused by product handling issues, jams or product twisting.
Cross-Contamination Protection
This curtainless X-ray is ideal for handling unsealed and unpackaged food, as no curtain food contact, preventing cross-contamination and making machine cleaning much easier.
No Compromise on Safety
The curtainless inclined (up/down) conveyor design, coupled with additional protective shields and safety measures ensures that X-ray radiation is contained within the system for operator safety.
High Throughput
The X5 Pack Curtainless handles multi-lane or bulk flowing food products across the belt to provide a high throughput.
Get inspecting fast with LOMA’s automatic product learn wizard

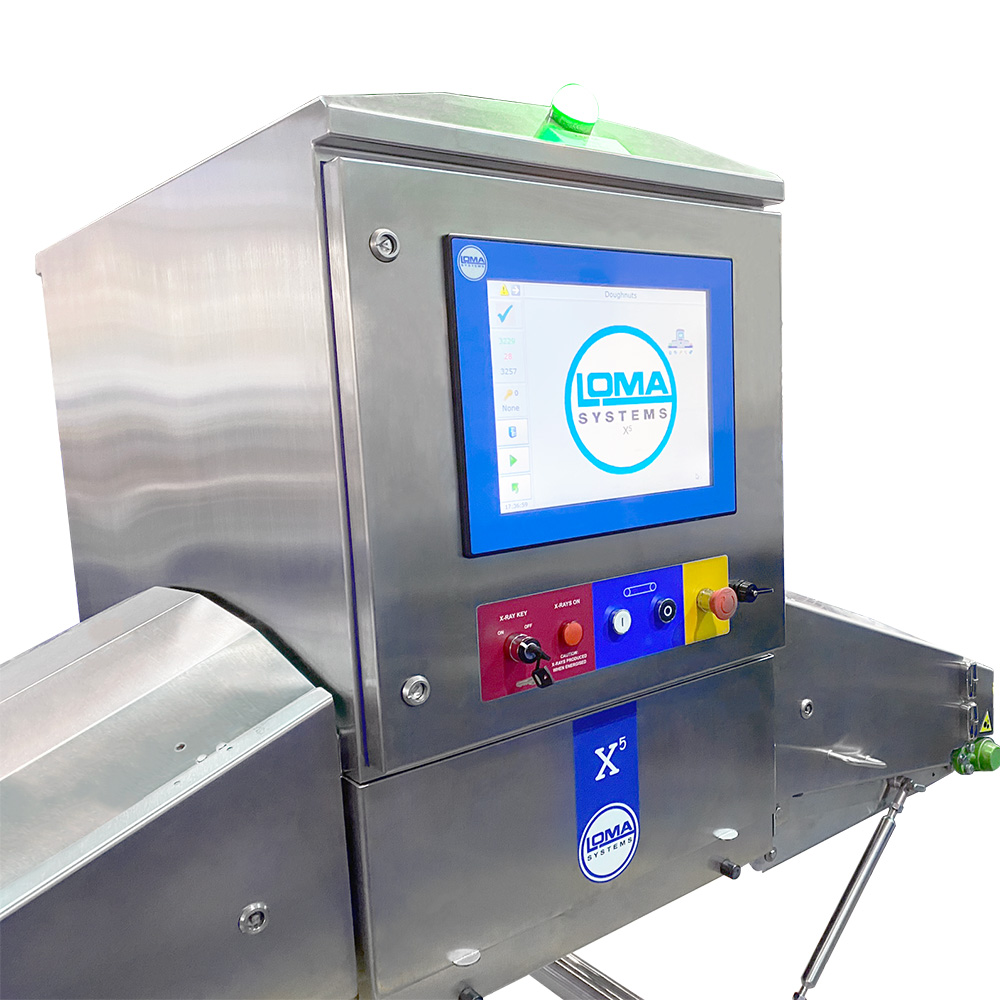

A set-up wizard optimizes the X5 Pack Curtainless for each product type and allows you to quickly learn or switch to new products within minutes using the intuitive touch screen display.
- Material of Construction: 304 Brushed stainless steel
- System Length: 2000 - 3600 mm, depending on configuration
- Line Height Option: 750 | 800 | 850 | 900 | 950 |1000 | 1050 (+/- 50mm adjustment)
- X-Ray Output: 210W (60kV 3.5 mA)
- IP Rating: IP66
- Belt Width: 600mm
- Weight on Belt: Up to 30kg
- Speed Range: 10 - 50 m/min
- Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & Earth
- Cooling: Vortex or AC Air Conditioning
- Operating Environment (Standard): 2 to 10oC with cabinet warm up, 10 to 25oC with Vortex
- Operating Environment (Optional): 25oC to 35oC AC Air conditioning (Cabinet reduced to NEMA 4x with AC Option)
- X-Ray Safety: Leakage less than 1 μSv/h
- Detection Algorithms: 15 Multilayers Algorithms combined in any combinations
- Reporting: Event, Batch, Shift, PVS
- Data Retrieval: Via USB, Ethernet, TRACS
- Check product integrity including counting and missing items
- Manufactured with LOMA's "Designed to Survive" philosophy
- Lead free construction
- Confectionery & Snack Foods
- Bakery
- Convenience Food | Food-to-Go
- Dried Foods, Cereals & Grains
- Pharmaceutical & Nutraceutical
- Other / General Industries
