All documents relating to the X5 XL 800 including Datasheets, White Papers and Case Studies can be downloaded below.

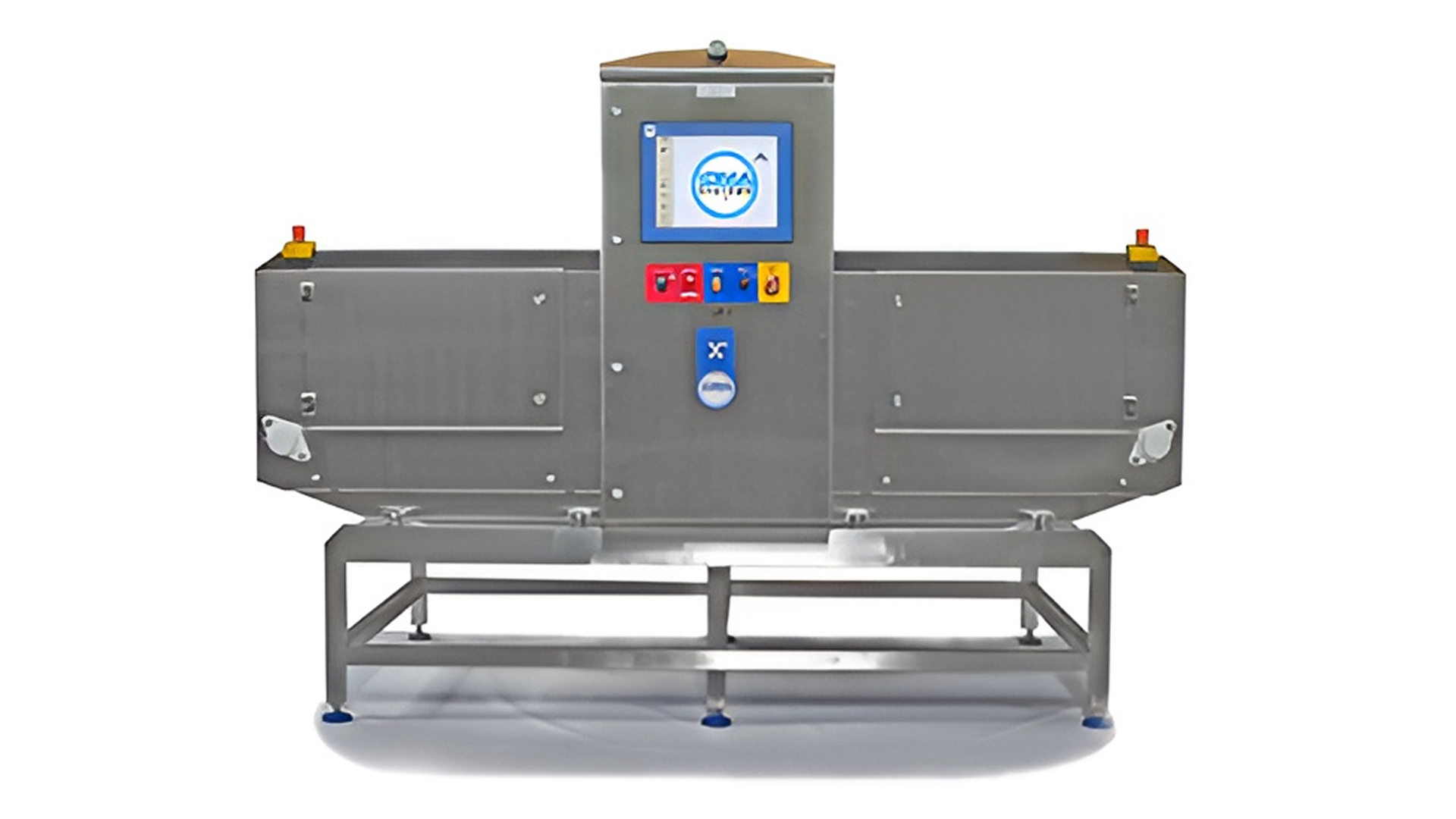

X5 XL 800 X-Ray Inspection System
Robust system designed for in-line inspection of boxed or crated Products
Designed to be integrated into the production process at either the beginning to protect equipment or at the end to protect consumers, the X5 XL 800 is perfect for products such as meat in Euro crates or cheese in bulk boxes.
Offering good detection levels on a wide range of contaminants including all metal, bone, glass, dense plastics.
The reliable heavy duty conveyor components, built for 24/7 operation with pass key protective Set-up comes intergrated with a Windows (WES) Industrial grade PC with Modem, Ethernet and front access USB port.
Working to a Code of Practice (COP)? – All Loma Machines can be spec’d to the latest COP’s of your choice from M&S to Sainsbury’s. Learn more about the codes of practices and what it means for your business.
The IQ3/IQ3+ Conveyor system is the perfect solution for the inspection of the following product types:
- Meat in Euro Crates
- Large blocks of Cheese
- Bulk Tins
- Large Boxes of Confectionary
- Bulk Boxes of Powders
Large Products, Euro Crates and Bulk Bags of 25kg up to 100kg
Designed to handle sealed large bulk products prior ro processing or distribution. Ideal for products such as crates
Easy to Use Intuitive Full Colour Touchscreen
The X5 Pack includes an Icon driven full colour touchscreen control interface including multi-level password access and data logged events for traceability (designed to comply with CFR21 Part 11 requirements).
Intralox Belt for Easy Wash Down and Cleaning
Intralox belt makes cleaning easy for machines in High-Care environments.
- Finish: Brushed 304 Stainless Steel
- System Length: 2500mm
- Line Height Options: 900mm (+/- 50 adjustment)
- Product Height: 250mm (Recommended Max)
- Product Width: 800mm (Recommended Max)
- Product Length: 1000mm (Recommended Max)
- X-Ray Output: 240W (80 KV 3mA)
- IP Rating: IP66
- Belt Width: 800mm
- Belt Type: Modular (Intralox)
- Weight on Belt: Up to 100kg
- Speed Range: 50m/min
- Power Requirmements: 220-230 V, 50Hz or 110-120V, 60Hz, Single Phase Mains
- Operating Environment 0 to 15°C | 50 TO 77°F
- Cooling: 0 TO 15°C Vortex Cooling, 15 – 40°C Air Conditioner Option
- X-Ray Safety: Leakeage less than 1 µSv/h
- Detection Algorithms: 15 Multilayers Algorithms combined in any combinations
- Reporting: Event, Batch,Shift
- Data Retrieval: Via USB, Ethernet, Enet, Tracs
- Retail compliant options to suit M&S, Tesco, J Sainsbury’s, Morrison’s, Waitrose, Wal-Mart, Costco and BRC v7
- Manufactured with Loma’s “Designed to Survive” philosophy
- Lead-free construction
- 800mm wide inspection window with no product blind spots
- Contaminant detection as well as product integrity including counting and missing items
- Belt speeds of up to 50m/min
- Product weights up to 100kg
