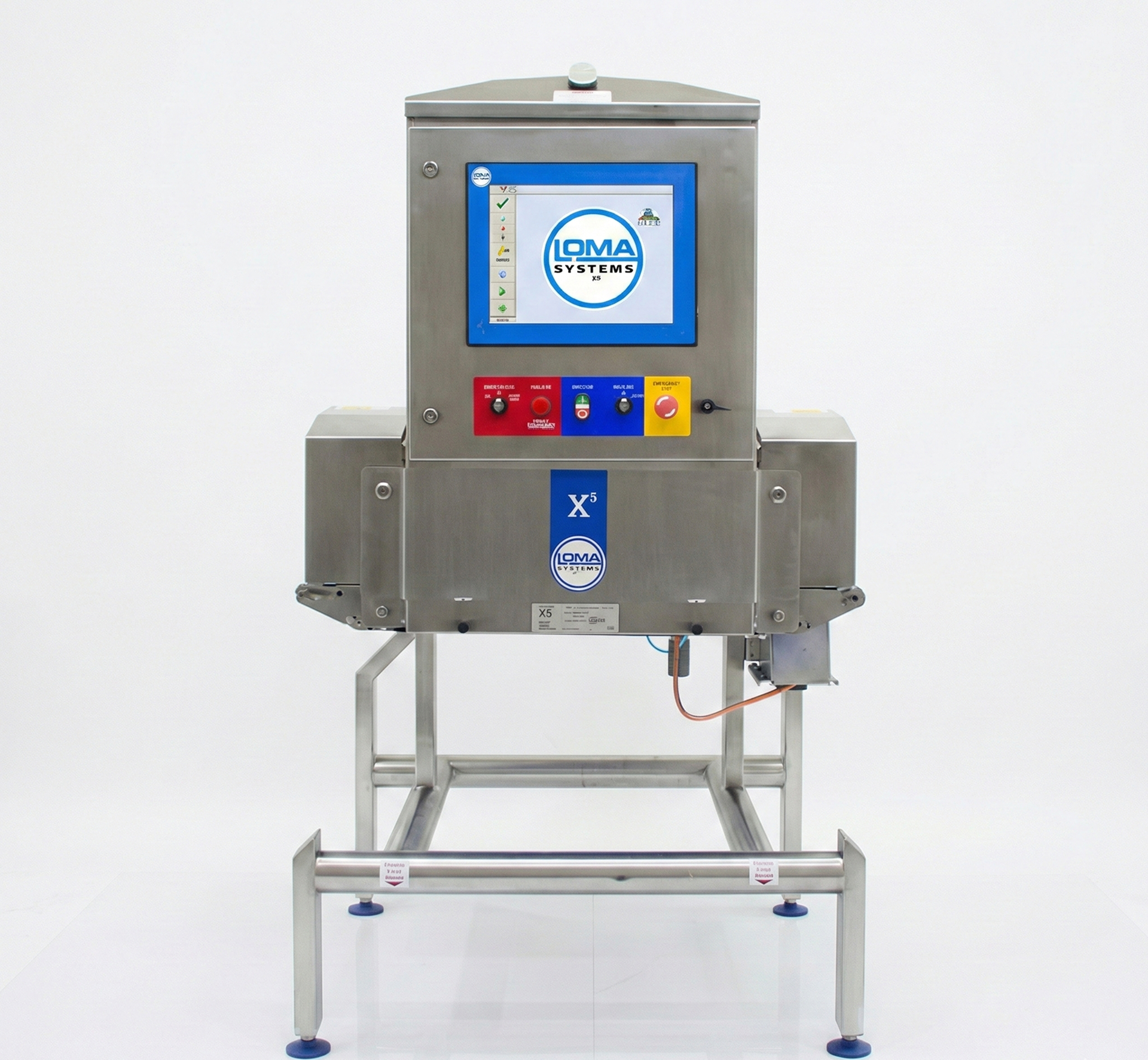

X5 SpaceSaver X-Ray Inspection System
Compact system designed for end of line Packaged Products
Designed to be integrated into line with optional free standing reject, Available in 300mm and 500mm belt width models, the X5 SpaceSaver is perfect for packed products with a width of upto 250mm.
Offering good detection levels on a wide range of contaminants including all metal, bone, glass, dense plastics, foil trays or even metalized film.
The reliable heavy duty conveyor components, built for 24/7 operation with pass key protective Set-up comes intergrated with a Windows (WES) Industrial grade PC with Modem, Ethernet and front access USB port.
Working to a Code of Practice (COP)? – All Loma Machines can be spec’d to the latest COP’s of your choice from M&S to Sainsbury’s. Learn more about the codes of practices and what it means for your business.
The X5 SpaceSaver is the perfect solution for the inspection of the following product types:
- Ready meals in foil or plastic trays
- Processed and un-processed meats incl. sausages, joints, ham with/without bone, etc
- Cakes, sweets/candy and other snack foods such as crisps/chips, chocolate bars, biscuits
- Sushi, fish, tinned fish, seafood on foil boards
- Prepared fruit and vegetables
- Ready to eat convenience foods
Versatile Detection with AAT Technology
AAT Technology allows 0.4mm Diode setting for very small metal contaminants, with the option of switching to 0.8mm & 1.6mm to find softer contaminants such as Bone, Ceramic and Glass.
Easy to Use Intuitive Full Colour Touchscreen
The X5 SpaceSpaver includes an Icon driven full colour touchscreen control interface including multi-level password access and data logged events for traceability (designed to comply with CFR21 Part 11 requirements).
Compact System Optimises Valuable Space
The X5 SpaceSpaver is built with Loma’s strong experience of food industry inspection systems and offers first-class CCP protection in the smallest footprint possible at just 1000mm line length.
- Finish: Brushed 304 Stainless Steel
- System Length: 1000mm (Machine Only) 2356mm (With optional auto-reject)
- Line Height Options: 750-1000mm (+/- 50 adjustment)
- Product Height: 180mm (Recommended Max)
- Product Width: 300 Model = 146mm, 500 Model = 250mm (Recommended Max)
- Product Length: 750mm (Recommended Max)
- X-Ray Output: 150W (60 KV 2.5mA)
- IP Rating: IP66
- Belt Width: 300mm & 500mm
- Belt Type: PU Blue Belt
- Weight on Belt: Up to 6kg
- Speed Range: 20 – 75m/min
- Power Requirmements: 220-230 V, 50Hz or 110-120V, 60Hz, Single Phase Mains
- Operating Environment (Vortex Standard): 2 to 10°C with warm up, 10 – 25°C Vortex.
- Operating Environment AC Air Conditioning (Option): 25 to 35°C Air Conditioning (Cabinet reduced to NEMA 4X with AC Option)
- Cooling: Vortex or AC Air Conditioning
- X-Ray Safety: Leakeage less than 1 µSv/h
- Detection Algorithms: 15 Multilayers Algorithms combined in any combinations
- Reporting: Event, Batch,Shift and PVS
- Data Retrieval: Via USB, Ethernet, Enet,
- Retail compliant options to suit M&S, Tesco, J Sainsbury’s, Morrison’s, Waitrose, Wal-Mart, Costco and BRC v7
- Can be combined with Loma’s CW3 checkweigher to provide a combo system
- Compact design, space required typically less than a conventional Metal detector (1800mmm including auto-rejection, 1000mm without)
- Manufactured with Loma’s “Designed to Survive” philosophy
- Lead-free construction
- 300mm & 500mm wide inspection window with no product blind spots
- Contaminant detection as well as product integrity including counting and missing items
- Typical packing rates of 185 packs per minute
- Product weights up to 6kg
- Rejection options include air blast, pusher and signal only for 3rd party rejection systems
