IQ4m Metal Detector
IQ4M Metal Detector

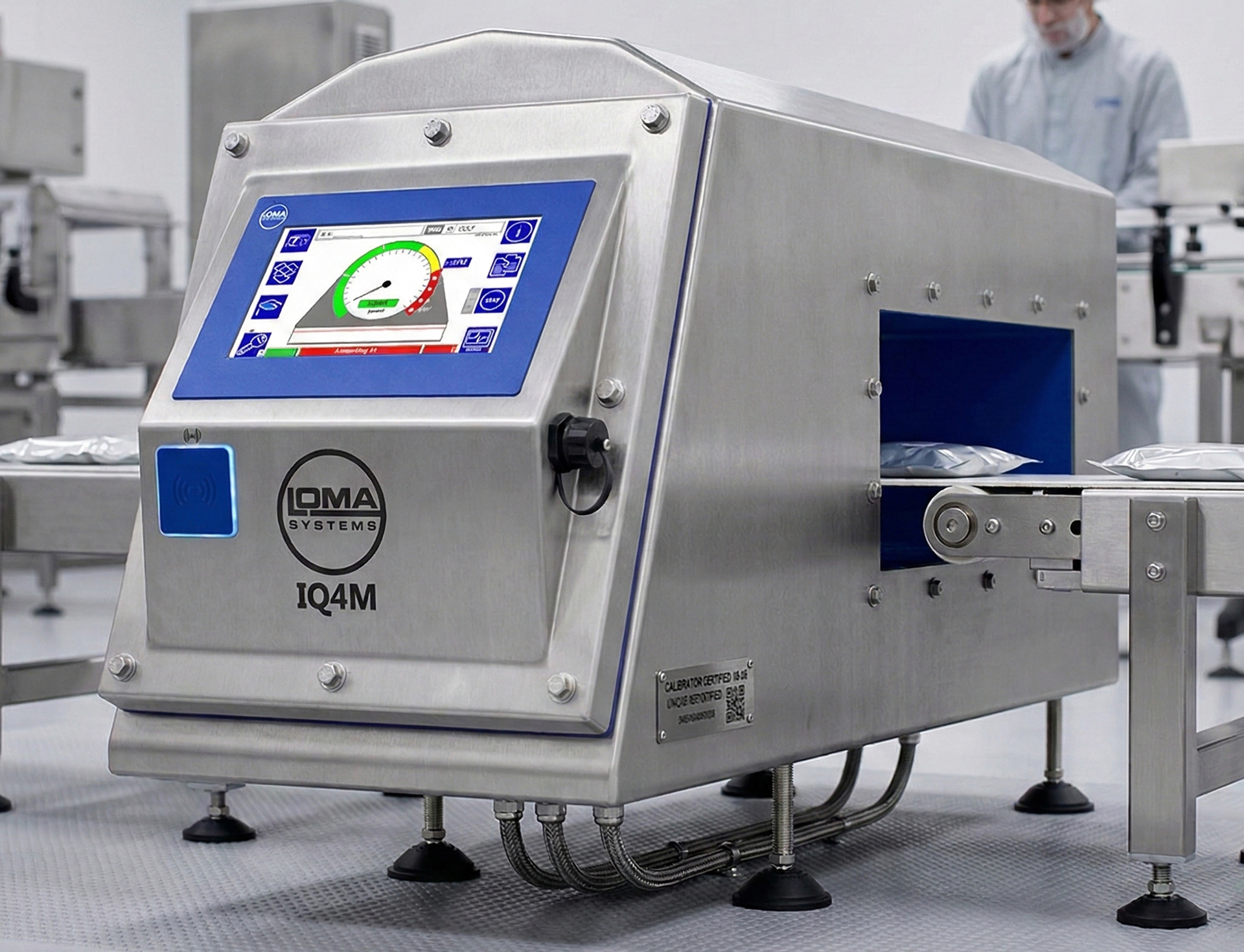

The IQ4M Metal Detector is the most precise metal detector in the IQ4 range as it features both Multi-spectrum detection and Variable Frequency technologies. Equipped with a 7” colour touchscreen, the IQ4M features an intuitive user interface that simplifies the process of setting, operating and maintaining the IQ4 range, thereby minimizing user errors. IQ4M metal detectors are specifically engineered for integration into production lines or conveyor systems. These conveyor systems adhere to stringent international standards, including IFS, BRC, and FSMA, and can be configured to meet the highest levels of compliance with strict Retail Codes of Practice.
Why the IQ4M is the Smart Choice
Multi-Spectrum and Variable Frequency Technology
Multi-spectrum (multi-frequency scanning) technology is designed to detect smaller contaminants across a wider range of metal types. The IQ4M’s variable frequency technology optimizes detection by selecting the most suitable frequency for a specific product. The combined features result in enhanced detection capabilities and a reduction in false positives.
RFID
RFID technology enhances product security and data integrity while also expediting the login process.
OPC-UA
OPC-UA is an industry-standard open communications protocol representing the latest generation of OPC technology. The IQ4M is equipped with Industry 4.0 connectivity, enabling data to be exchanged in a standardized format with other systems within the factory.
- Material of Construction: 304 Brushed stainless steel
- True Variable Frequency: 34 to 1200 KHz
- Supply Voltages: 85 to 265 V, single phase 50/60 Hz, neutral & Earth
- Power Consumption: 20 VA
- Air Supply: 5 to 8 Bar (10 mm outside diameter) 72-116 psi
- Temperature Range: -10 to +40 °C (14 to 104 °F)
- Humidity: 0 to 95% Relative Humidity (Non-condensing)
- IP Rating: IP69
- PVS Enabled: Yes
- Ethernet Capability: Yes, OPC-UA, TRACS, LomaData
- USB Capability: Yes
- RFID Compatibility: 13.56 MHz - High Frequency
- Supplied with reject signal output
- Manufactured with LOMA's "Designed to Survive®" philosophy
- Bakery
- Confectionery & Snack Foods
- Convenience Food | Food-to-Go
- Dairy and Egg Products
- Dried Foods, Cereals & Grains
- Fruit, Vegetables & Nuts
- Meat, Poultry & Fish
- Other / General Industries
